CIR615A

CIR615A

CIR615A

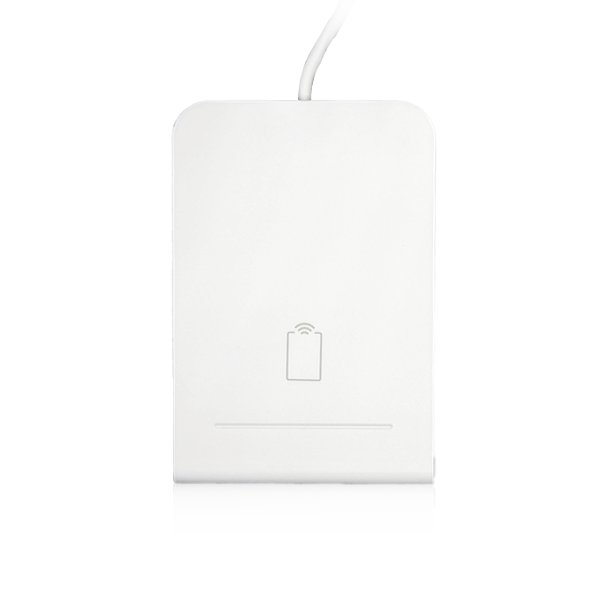

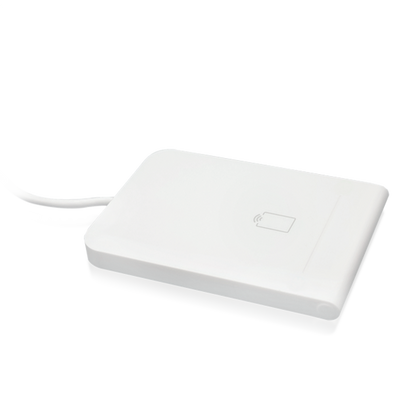

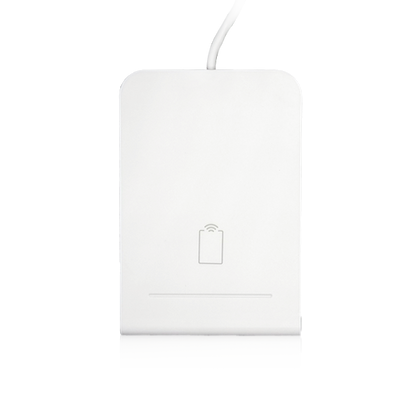

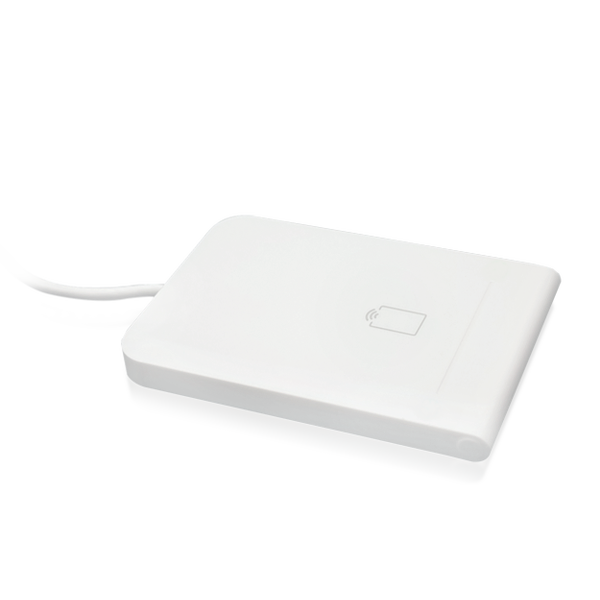

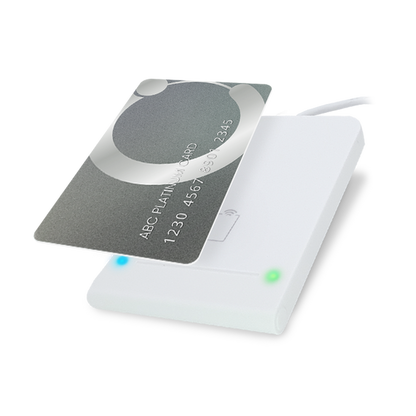

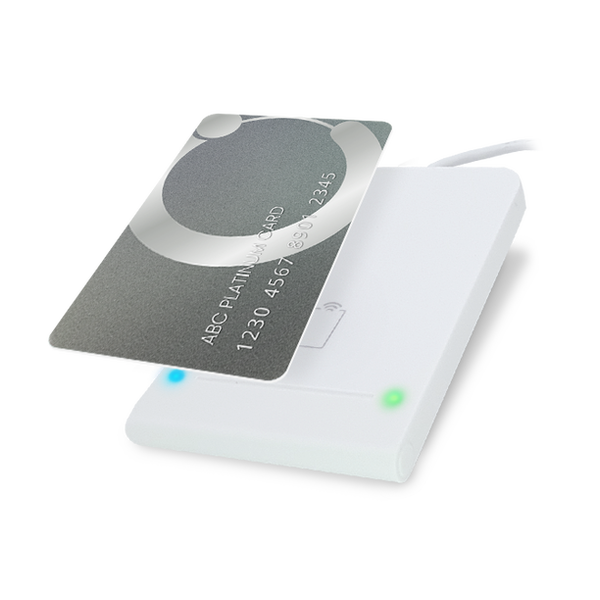

Contactless Smart Card Reader with Keyboard Emulation

A USB human interface device (HID) device that reads and displays UID / IDm# of contactless tag at the cursor of the host application directly without driver installation

Specifications

Easy-to-use and interoperable

  • Supports ISO/IEC 14443, ISO/IEC 18092 and ISO/IEC 15693 standards
  • Supports ISO/IEC 14443-4 Type A & B cards, ISO/IEC 15693-3 cards, MIFARE® series, FeliCa, J-LIS cards, Calypso and NFC Forum Type 1/2/3/4/5 Tags
  • Supports 1 x ISO/IEC 7816 Part 3/4 SAM slot (Optional)
  • Supports extended APDU
  • Complies with CCID and HID standard
  • Conforms to PC/SC specifications
  • Firmware upgradable
  • Works on different operating systems
  • Optional connector types: USB A or USB C
  • USB cable length: 1m

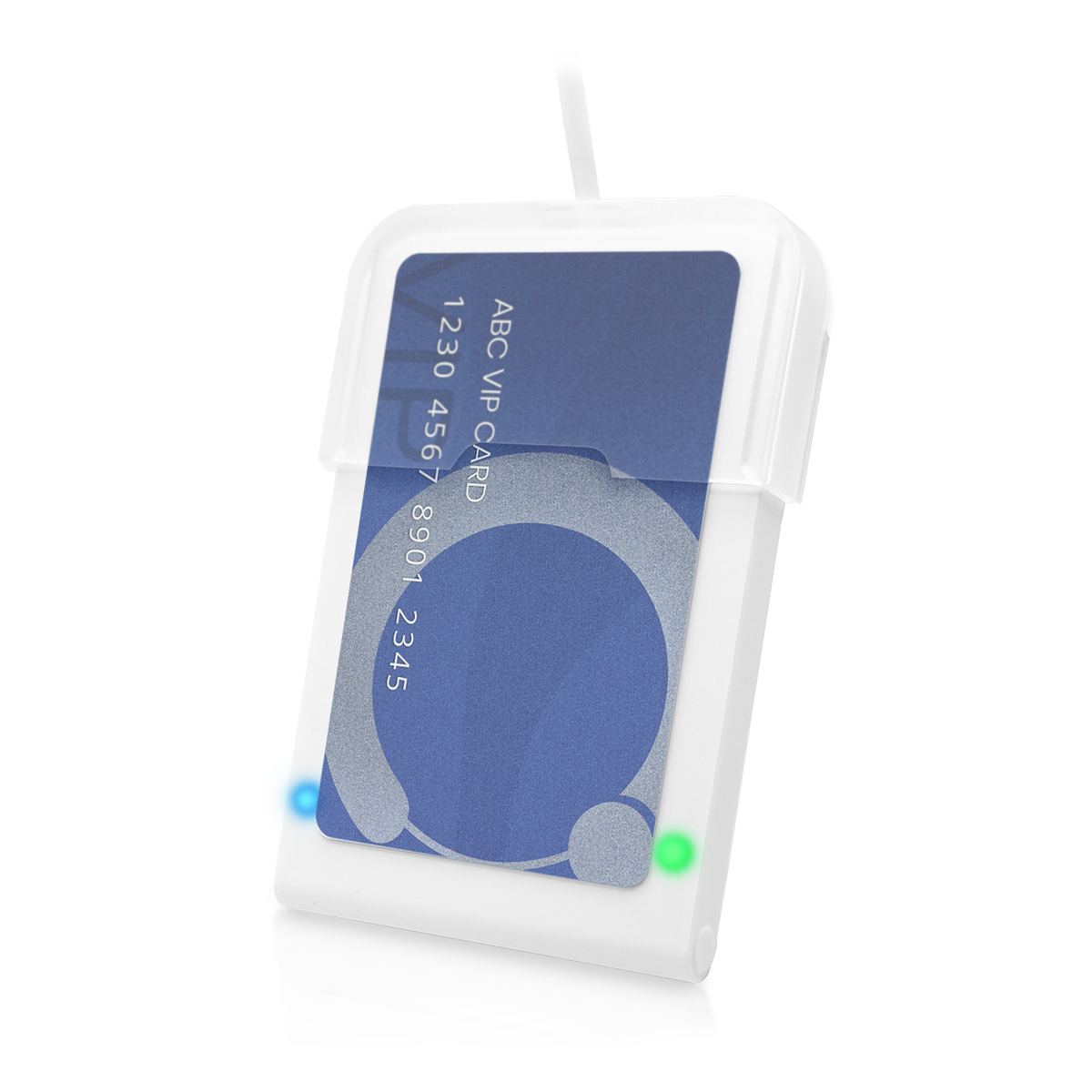

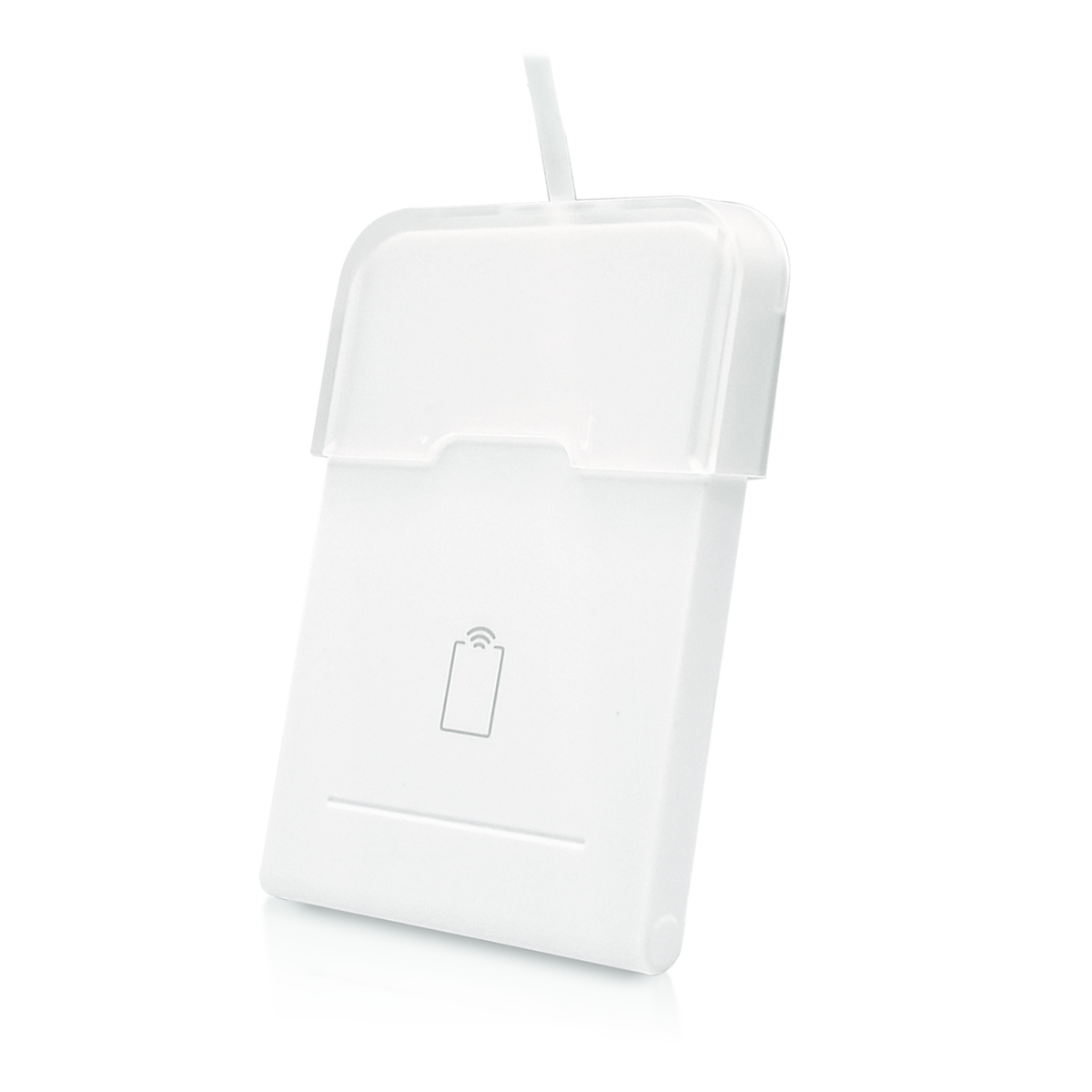

  • A transparent card holder is included

Ordering Information

  • CIR615A-01: USB Type A Connector, with SAM slot (Standard)
  • CIR615A-02: USB Type A Connector, without SAM slot (MOQ is required)
  • CIR615A-03: USB Type C Connector, with SAM slot (MOQ is required)
  • CIR615A-04: USB Type C Connector, without SAM slot (MOQ is required)
* If order quantity does not meet the MOQ of CIR615A-03 & CIR615A-04, an extension cable of USB Type C Male to USB Type A Female enables you to connect CIR615A-01 with any USB Type C port of your devices. Contact us to learn more.



# The UID of ISO/IEC 14443-4 Type B card is not constant.
