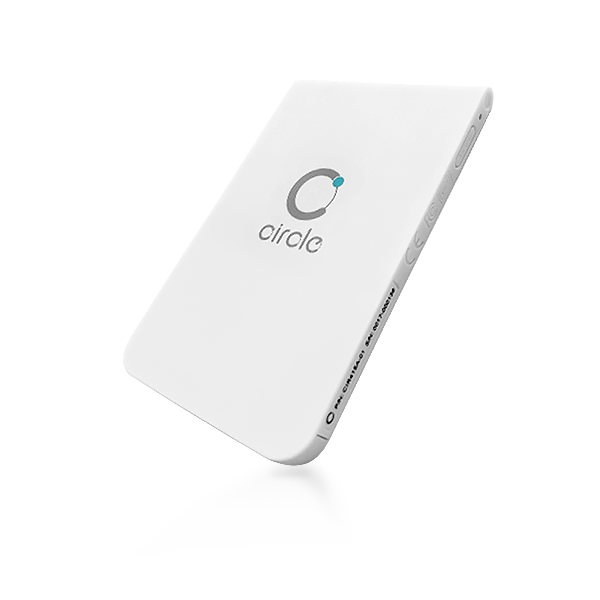

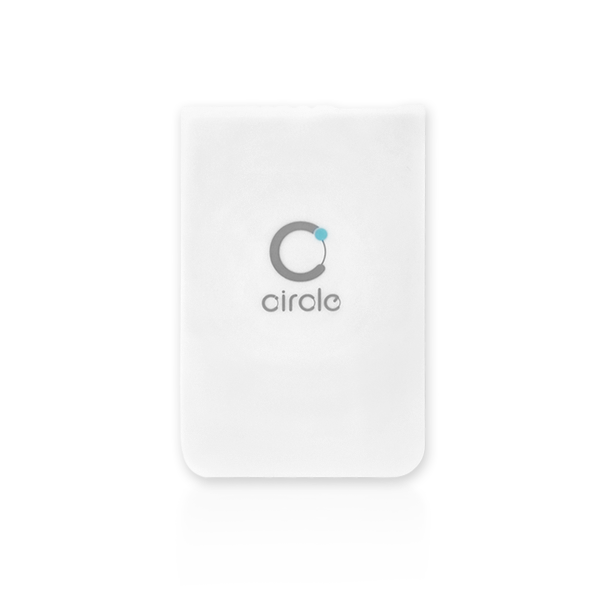

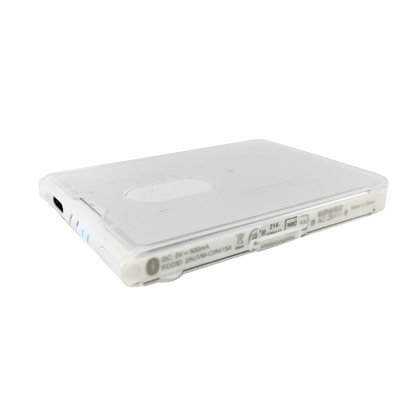

CIR415A

CIR415A

Bluetooth® Contactless Smart Card Reader

A wireless contactless smart card reader in a sleek and ultra-slim design supporting latest Bluetooth® and contactless technologies

Specifications

Sleek and ultra-slim

  • Supports Bluetooth® 5.0
  • Supports ISO/IEC 14443, ISO/IEC 18092 and ISO/IEC 15693 standards
  • Supports ISO/IEC 14443-4 Type A & B cards,
    ISO/IEC 15693-3 cards, MIFARE® series, FeliCa, J-LIS cards, Calypso and NFC Forum Type 1/2/3/4/5 Tags

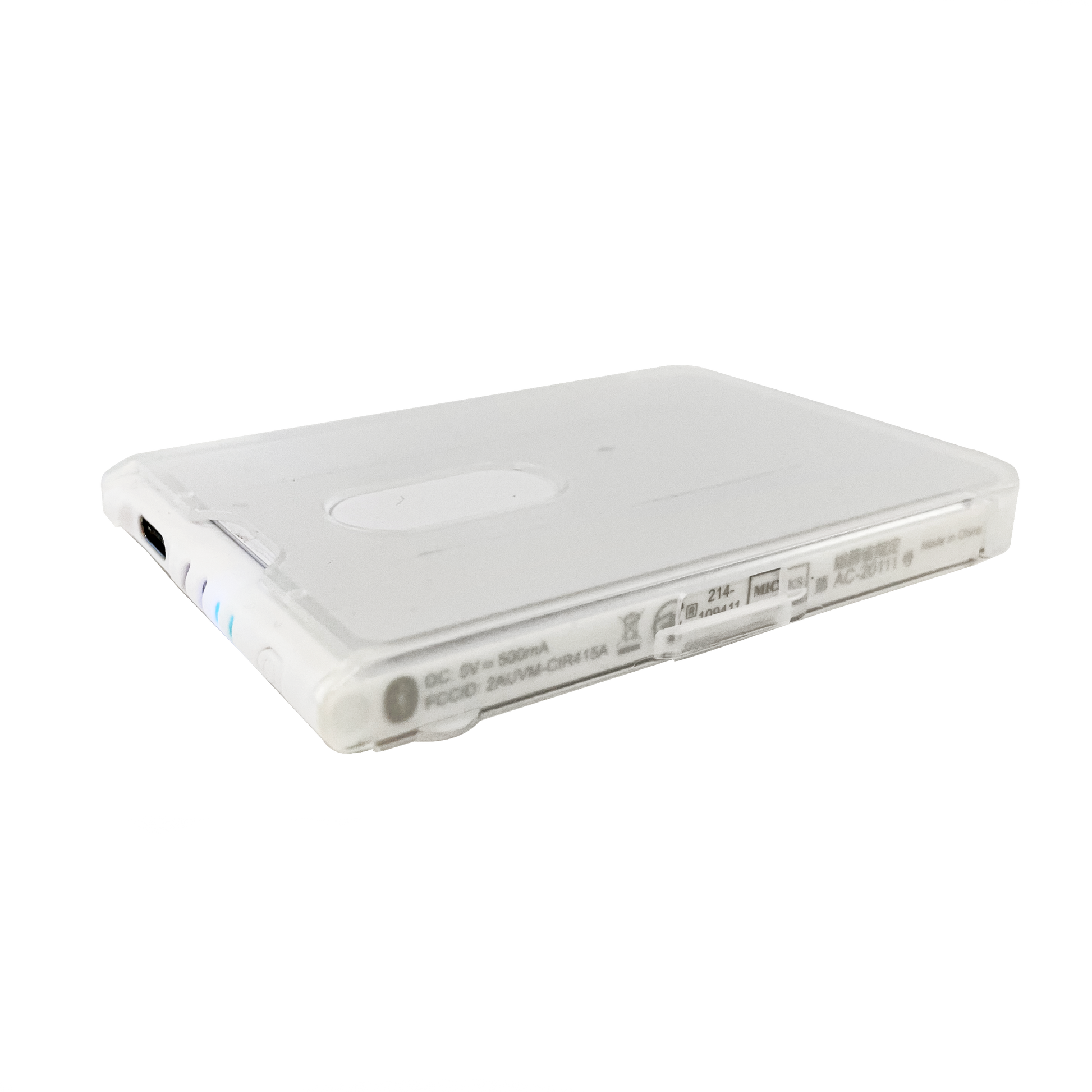

  • Supports 1 x ISO/IEC 7816 Part 3/4 SAM slot (Optional)
  • Supports extended APDU
  • Complies with CCID standard
  • Conforms to PC/SC specifications
  • Firmware upgradable
  • Works on different operating systems

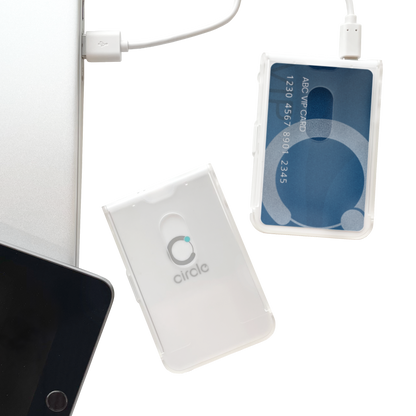

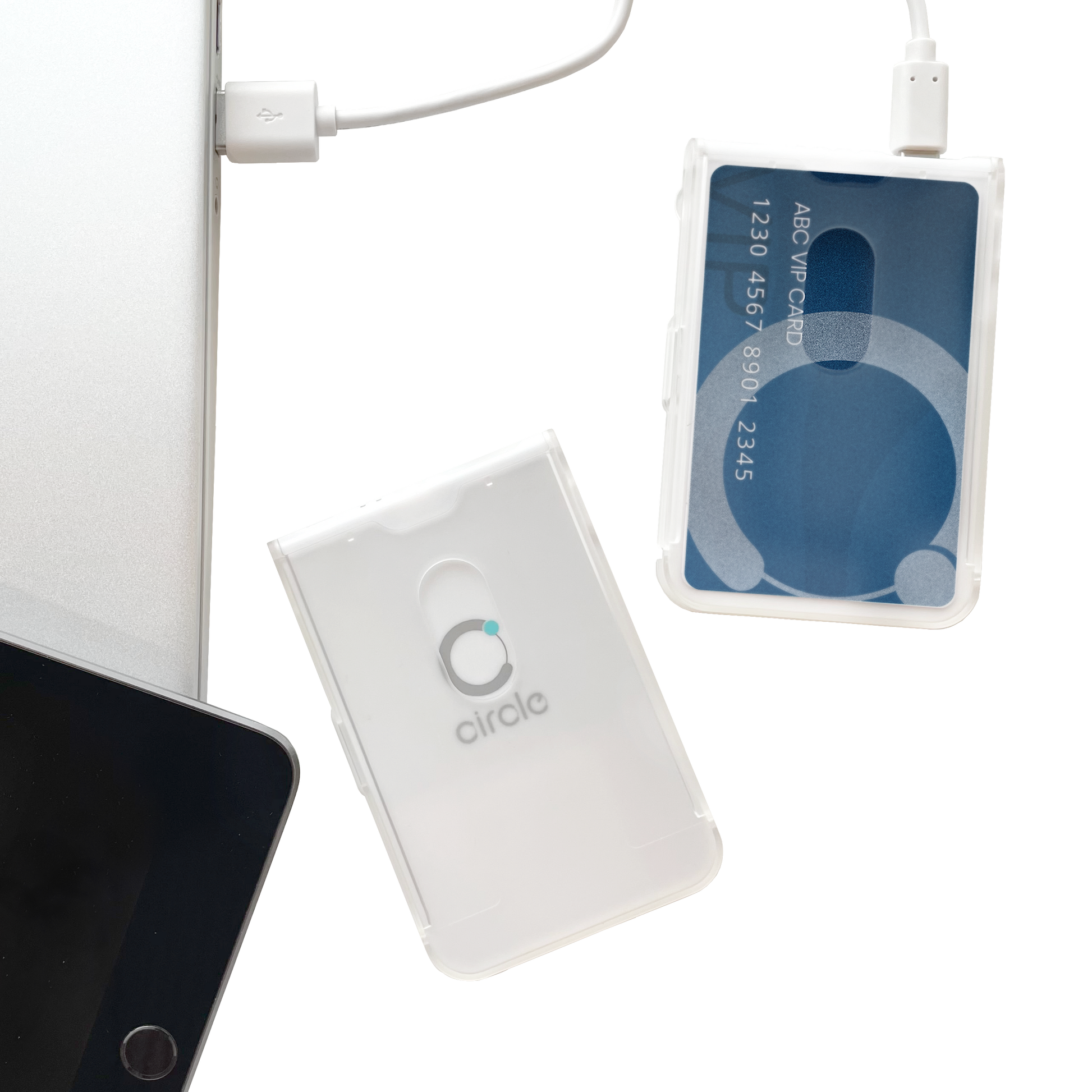

  • A detachable 1m USB Type C (Male) to Type A (Male) cable is included

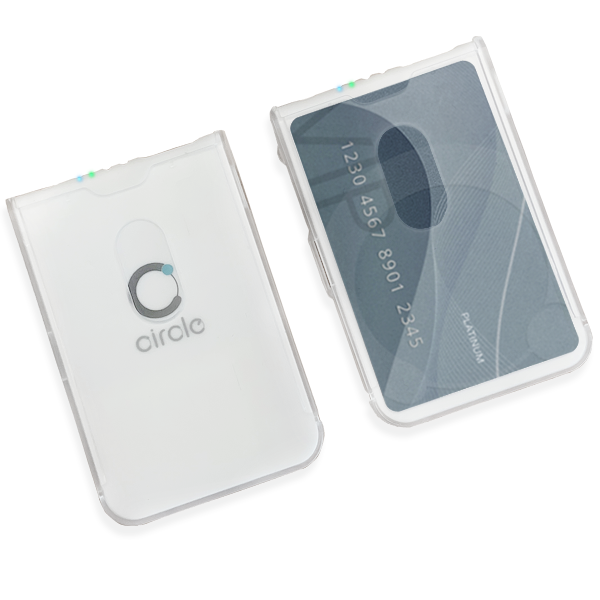

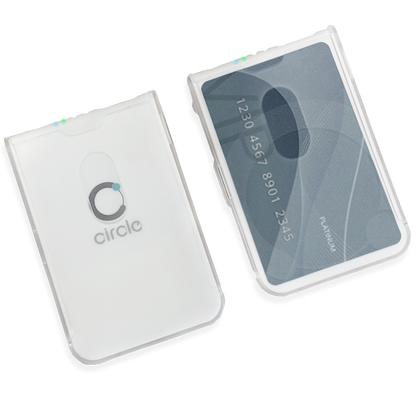

  • A transparent card holder is included

Power

  • USB Supply Voltage: USB Bus-powered (DC 5V) *
  • USB Rated Current: At least 500mA
  • Battery: 3.7V 400mAh Rechargeable Lithium-ion Battery (charged through USB)
*Please use the specified voltage to charge the product

Ordering Information

  • CIR415A-01: USB Type C (Female) Connector, with SAM slot
